01
Complete Electrical Isolation Protection
Provides full separation between primary and secondary circuits for enhanced electrical safety.
Product Details
Isolation That Keeps Sensitive Equipment Safe.

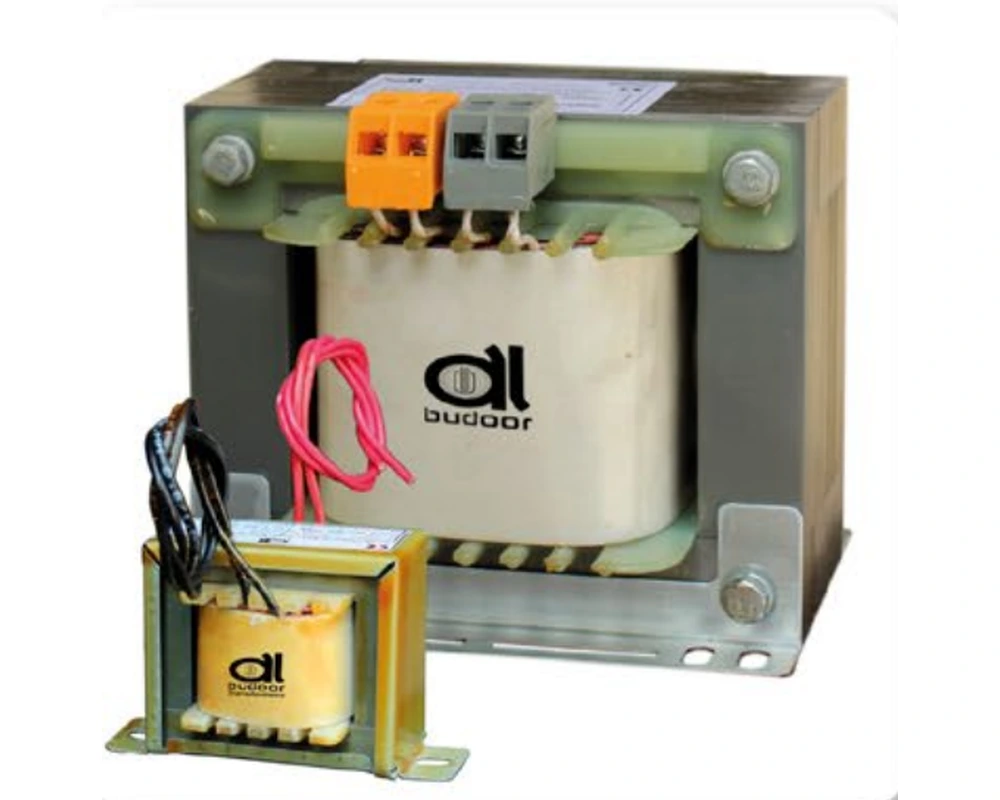

Al Budoor manufactures high-reliability, low-loss single-phase dry-type isolation transformers for single-phase power applications. They are ideal for powering single-phase AC equipment such as motors, precision instruments and medical devices, and work as safety isolation transformers for anti-interference and strict safety-demanding devices.
Technical Specifications
- Type
- Single-phase dry-type isolation transformer
- Power Range
- 0.05 kVA to 50 kVA (BIT-50 to BIT-50K)
- Efficiency
- ≥ 99% at full load
- Core Construction
- Multi-stage lamination core with optimized winding technology, reducing iron loss by 15% compared with traditional transformers
- Primary Voltages
- 100, 110, 120, 127, 200, 208, 220, 230, 240, 250, 277, 380, 400, 415, 440, 460, 480, 500, 600, 660, 690 V
- Secondary Voltages
- 12, 24, 48, 110, 120, 127, 208, 220, 230, 240, 277, 380, 400, 415, 440, 460, 480, 500, 600, 660, 690 V
- Isolation
- Exceeds standard leakage isolation limits
Key Benefits
Product Features & Advantages
02
Excellent Anti-Interference Performance
Suppresses electrical noise and interference to protect sensitive equipment and ensure stable operation.
03
High Efficiency and Low Loss
Achieves full-load efficiency of 99% or higher, helping minimize energy losses.
04
Strong Environmental Adaptability
Designed to operate reliably under demanding environmental and operating conditions.
05
Comprehensive Safety Protection
Exceeds standard leakage isolation limits to support safer electrical operation.
06
Flexible Customization and Installation
Can be customized to meet specific voltage requirements and installation needs.
07
Wide Application Adaptation
Supports a broad range of applications through flexible voltage compatibility.
