01
True RMS Metering
Input and output voltage, current, frequency and temperature are measured and displayed.
Product Details
Stable Voltage for Every Load.

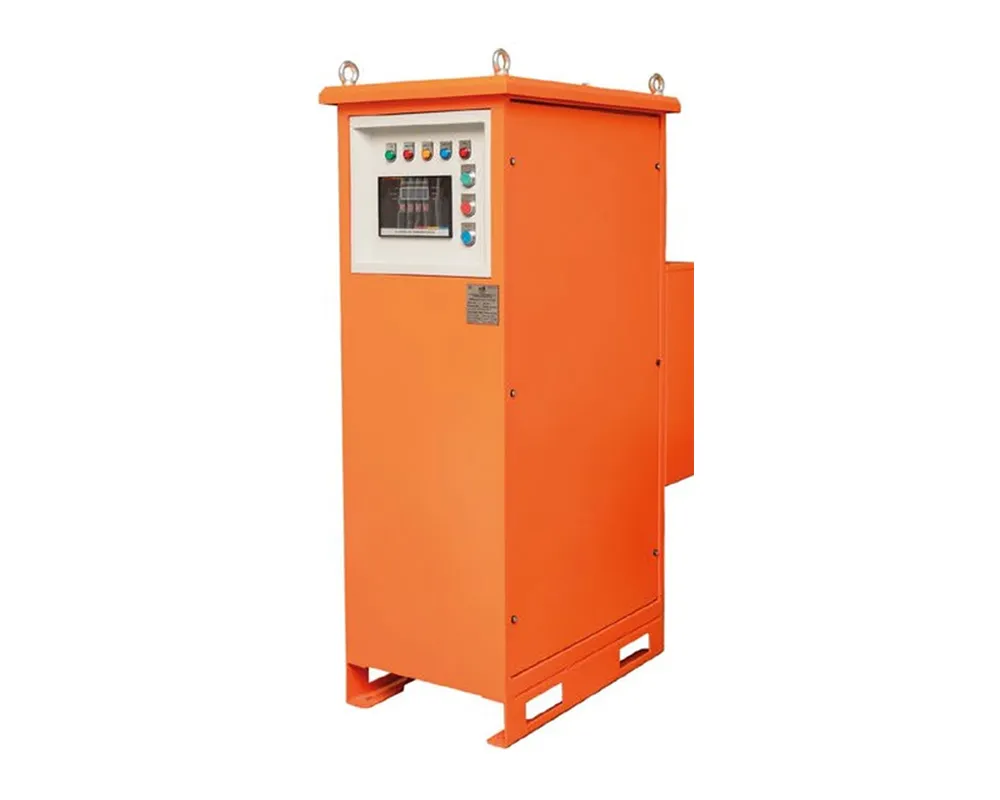

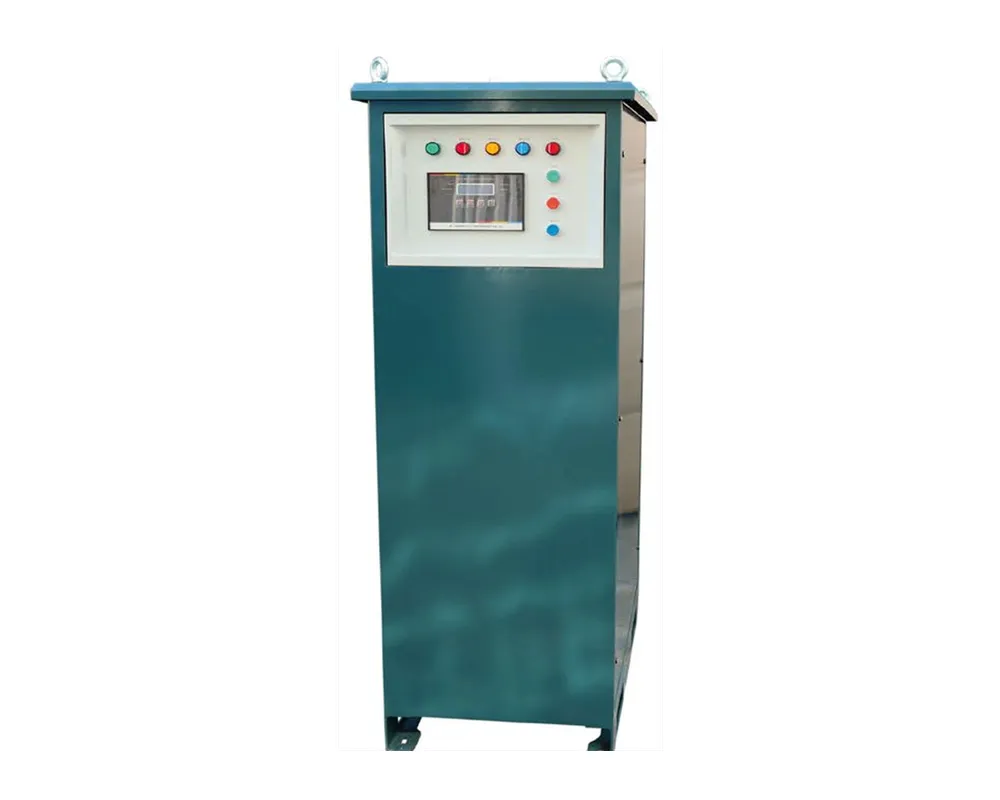

Al Budoor servo voltage stabilizers protect your equipment from voltage fluctuations with individual phase correction, accurate regulation and true RMS monitoring. They are available for single-phase and three-phase supplies, and for indoor and outdoor installation.
Technical Specifications
- Power Ratings
Three phase up to 2 MVA

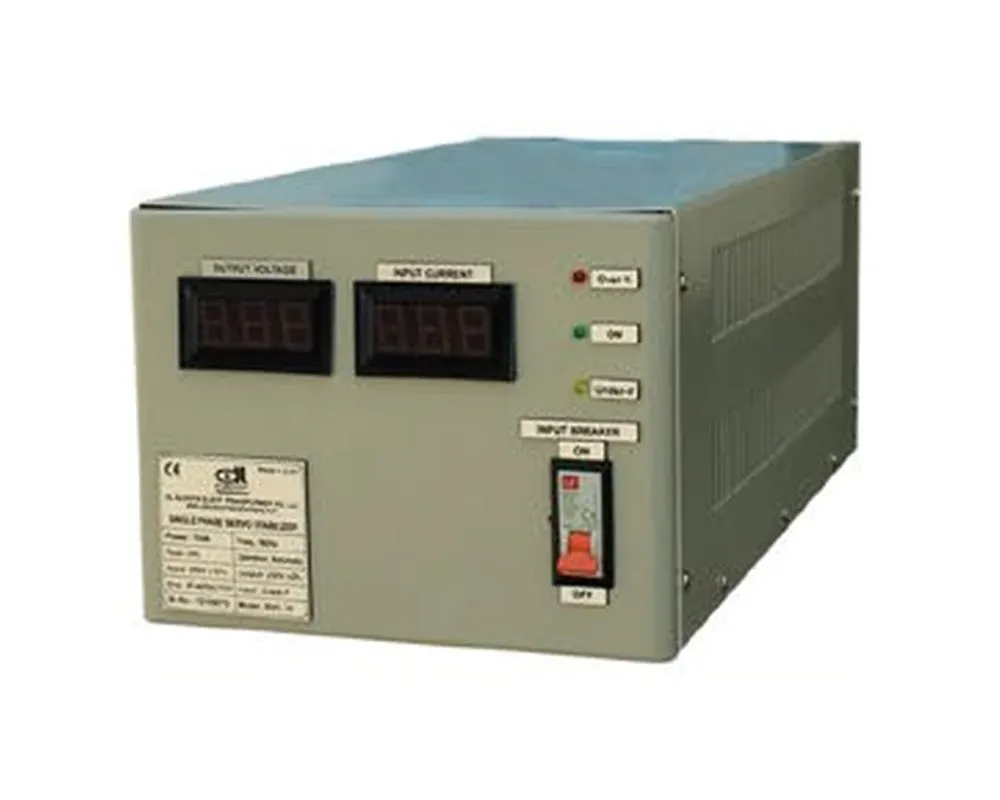

Single phase up to 350 kVA
- Input Voltage
Three phase: 380 V / 400 V / 415 V etc.
Single phase: 220 V / 230 V / 240 V etc.
- Output Voltage
Three phase: 380 V / 400 V / 415 V etc.
Single phase: 220 V / 230 V / 240 V
- Output Accuracy
- 3%2%1% RMS
- Frequency
- 50/60 Hz ± 5%
- Admitted Load Variation
- 0–100%
- Harmonic Distortion
- < 0.1%
- Efficiency
- > 98.5%
- Insulation Class
- Class FClass H
- Cooling Types
-
ANAir NaturalANAFAir Natural Air ForcedStandardONANOil Natural Air Natural
- Protection Degree
- IP-21IP-23IP-43IP-44IP-55IP-65
- Installation
- IndoorOutdoor
- Phase Correction

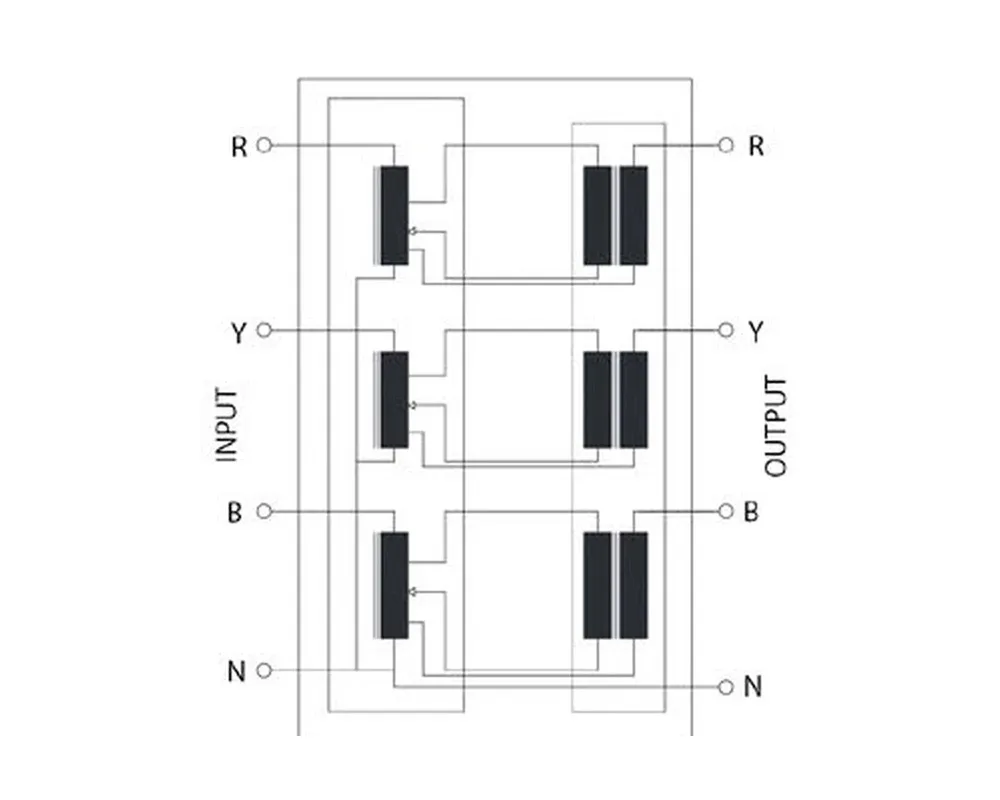

- Individual phase correction
Key Features
Key Features
Built for protection, accuracy and control.
02
TRIAC-Based Control
TRIAC-controlled voltage extends the life of the servo motor.
03
Overload Protection
Overload protection with settable cut-off time, and also with respect to the intensity of the fault that occurs.
04
Over / Under Voltage Protection
Over voltage and under voltage protection with settable cut-off voltage and time.
05
Reverse Phase Protection
Reverse phase protection or correction.
06
Over Temperature Cut-Off
Over temperature cut-off and oil level indicator.
07
Input High / Low Voltage Cut-Off
Input high-voltage and low-voltage cut-off.
08
Optional Fittings
Short circuit protection, overload protection, manual or automatic by-pass, isolation transformer and surge arrester.
